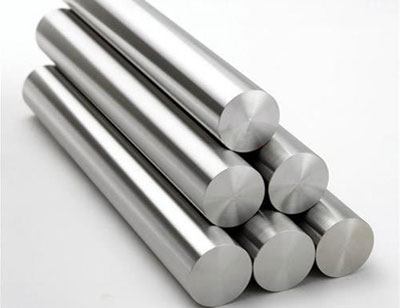

Round Bar
We also stock Bar, Hexagon, Square, Round products in various dimensions and grades. We stock Stainless Steel, Carbon and Alloy specialty steels supplied in the as rolled, annealed and normalized conditions. We offer cut to size and heat treatment through our service center.
User Industries: Chemicals, Fats, & Fertilizers, Sugar Mills & Distilleries, Cement Industries, Ship Builders, Paper Industries, Pumps, Petrochemicals, Oil & Natural Gas Organization in terms of the specific materials, Technology, Finance & Personal.
Stainless & Duplex Steel

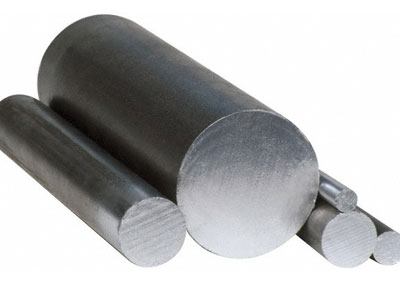

Carbon & Alloy Steel

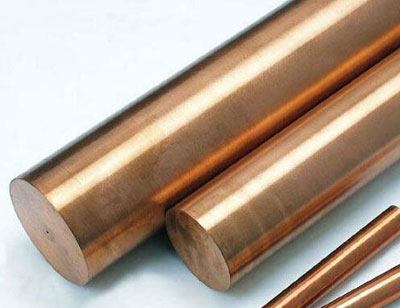

Nickel & Copper Alloy

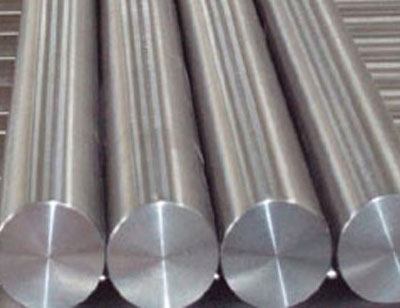

Hastelloy

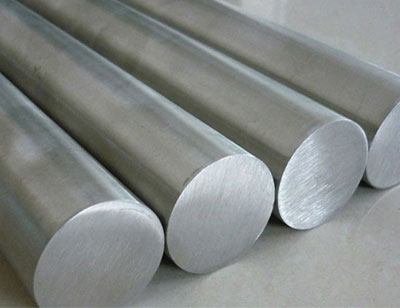

Inconel
Incoloy

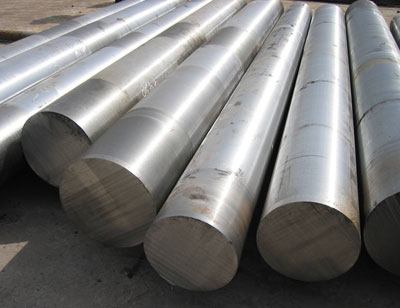

Monel

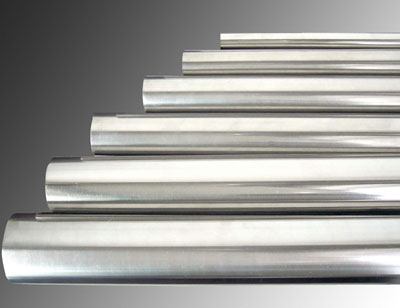

Nironics 50

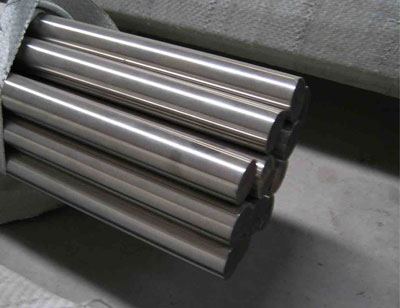

Nitronic 60
Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.
Characteristics of Nitronic 60 include
• High pitting resistance
• Outstanding corrosion resistance Good high temperature properties for temperatures around 982 degrees Centigrade
• Oxidation resistance
• Crevice corrosion and chloride pitting resistance is greater than Stainless Steel 316.
Nitronic 60 can be formed using common forming techniques, and pre-heating is not required to weld Nitronic 60. Common welding methods such as gas metal arc, gas tungsten arc and submerged arc can be used to weld Nitronic 60. Hardening Nitronic 60 Stainless Steel calls for the alloy to be cold worked.
Primary Elements:
• Between 16 and 18 percent Chromium
• 8 to 9 percent Nickel
• 7 to 9 percent Manganese
• 3.5 to 4.5 percent Silicon
• Halance being Iron
• Trace amounts of Carbon, Sulfur, Phosphorus and Nitrogen
Industries Served :
• Oil and gas production
• Hydroelectric power
• Petrochemical
• Food processing
• Automotive
• Zarine
• Nharmaceutical
• Construction and chemical sector.

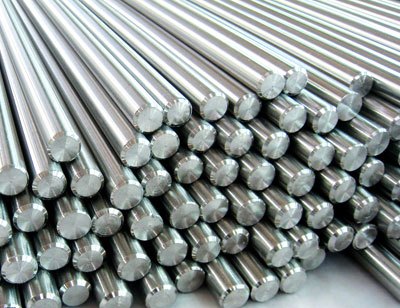

Titanium
Nitronic 60 Stainless Steel is an austenitic alloy, considered to have the best galling resistance of the entire range of Stainless Steels.
Specifications : Titanium round barGrade: Gr1, Gr2, Gr3, Gr5, Gr7
Standard: ASTM B348, ASTM F136, ASTM F67, AMS 4928
Specification:
1. Grade : Gr1, Gr2, Gr4 ,Gr5,Ti-6AL4V ELI,Gr.7, Gr.9, Gr.12
2. Standard : ASTM B348, ASTM F136, ASTM F67, AMS 4928
3. Size: Diameter : 4mm to 350mm, Length: 50mm to 6000mm
4. Payment : T/T or L/C at sight
5. MOQ : 10 kg
6. Package : Ply wooden case or as request
7. Delivery time : 7- 30 days after confirmed
8. Applications: industry, glasses so on.
Chemical Requirments:
N | C | H | FE | O | AI | V | PA | MO | NI | TI | |
---|---|---|---|---|---|---|---|---|---|---|---|
GR 1 | 0.03 | 0.08 | 0.015 | 0.020 | 0.18 | Â | bal | ||||
GR 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | bal | |||||
GR 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | bal | |||||
GR 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | bal | |||||
GR 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | bal | |||
GR 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.12~0.25 | bal | ||||
GR 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | bal | |||
GR 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | 0.2~0.4 | 0.6~0.9 | bal |
GRADE | TENSIL STRENGTH(MIN) |
YEILD STRENGTH(MIN) |
ELONGATION(%) | ||
---|---|---|---|---|---|
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
6 | 50 | 345 | 40 | 275 | 20 |
7 | 90 | 620 | 70 | 438 | 15 |
8 | 70 | 438 | 50 | 345 | 18 |

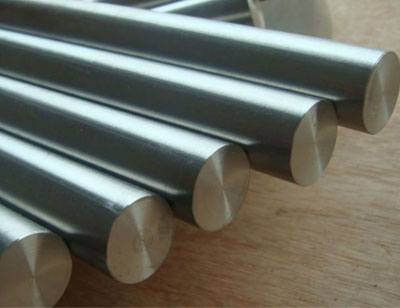

Tantalum
Tolerance :
DIAMETER | DIAMETER TOLERANCE | LENGTH | TOLERANCE | |||
---|---|---|---|---|---|---|
Forging rod | Extruded Rods | Rolling rod | Ground rod | |||
3.0-4.5 | ±0.05 | ±0.05 | 500-1500 | + 5 | ||
4.5-6.5 | ±0.10 | ±0.10 | 500-1500 | + 5 | ||
6.5-10.0 | ±0.15 | ±0.15 | 400-1500 | + 5 | ||
10-16 | ±0.20 | ±0.20 | 300-1200 | + 5 | ||
16-18 | ±1.0 | ±0.30 | 200-2000 | + 20 | ||
18-25 | ±1.5 | ±1.0 | ±0.40 | 200-2000 | + 20 | |
25-40 | ±2.0 | ±1.5 | ±0.50 | 150-4000 | + 20 | |
40-50 | ±2.5 | ±2.0 | ±0.60 | 100-3000 | + 20 | |
50-65 | ±3.0 | ±2.0 | ±0.80 | 100-1500 | + 20 |
