What is a Ring Type Joint Flanges

A Ring Type Joint Flanges is a type of flange that uses a metal ring that sits in a hexagonal groove as a gasket to seal the flange pair. The flanges seal when the bolts are tightened and the gasket is compressed into the groove making a metal to metal seal. RTJ Flanges are used for high pressure applications up to pressures as high as 15,000 psi (103 MPa).

The benefits of using an RTJ flange and ring is that the gasket is confined to a groove and has two sealing surfaces. The groove assures that the ring centers itself when the bolts are tightened. It also is self actuating meaning that the sealing pressure increases when the process pressure increases.

Ring Type Joint Flanges Specifications

Type : RTJ / Ring Type Joint Flange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Ring Type Joint Flanges Materials & Grades

Materials : Standard, Grades
Stainless Steel Ring Type Joint Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Ring Type Joint Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Ring Type Joint Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Ring Type Joint Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Ring Type Joint Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Ring Type Joint Flanges : ASTM A350 LF2, LF3, LF6
High Yield Ring Type Joint Flanges : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Ring Type Joint Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Ring Type Joint Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Ring Type Joint Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Ring Type Joint Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Ring Type Joint Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of RTJ Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 RTJ Flanges. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Ring Joint Flanges in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan etc.

Ring Type Joint Flanges Price List

Following is Ring Type Joint (RTJ) Flanges price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.
Latest Ring Type Joint Flange Price in Inda

Reference:alibaba

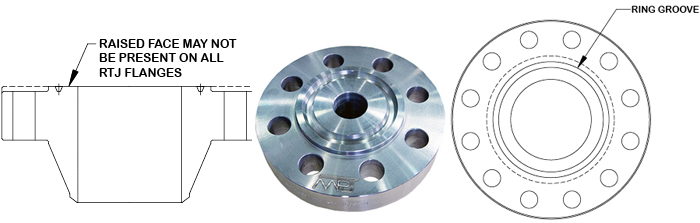

Ring Type Joint Flanges Dimensions:

Ring Type Joint Flange Dimensions WN RTJ Flange Dimensions(Class 2500):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 135 30.2 43 21.3 73 65 6.35 88.9 42.88 6.35 8.74 Refer Note
3/4 20 140 31.8 51 26.7 79 73 6.35 95.2 50.8 6.35 8.74
1 25 160 35 57 33.4 89 82.5 6.35 108 60.33 6.35 8.74
1 1/4 32 185 38.1 73 42.2 95 102 7.92 130.2 72.23 7.92 11.91
1 1/2 40 205 44.5 79 48.3 111 114 7.92 146 82.55 7.92 11.91
2 50 235 50.9 95 60.3 127 133 7.92 171.4 101.6 7.92 11.91
2 1/2 65 265 57.2 114 73 143 149 9.53 196.8 111.13 9.52 13.49
3 80 305 66.7 133 88.9 168 168 9.53 228.6 127 9.52 13.49
4 100 355 76.2 165 114.3 190 203 11.13 273 157.18 11.13 16.66
5 125 420 92.1 203 141.3 229 241 12.7 323.8 190.5 12.7 19.84
6 150 485 108 235 168.3 273 279 12.7 368.3 228.6 12.7 19.84
8 200 550 127 305 219.1 318 340 14.27 438.2 279.4 14.27 23.01
10 250 675 165.1 375 273 419 425 17.48 539.8 342.9 17.48 30.18
12 300 760 184.2 441 323.8 464 495 17.48 619.1 406.4 17.48 33.32
WN RTJ Flange Dimensions(Class 1500):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 120 22.3 38 21.3 60 60.5 6.35 82.6 39.67 6.35 8.74 Refer Note
3/4 20 130 25.4 44 26.7 70 66.5 6.35 88.9 44.45 6.35 8.74
1 25 150 28.6 52 33.4 73 71.5 6.35 101.6 50.8 6.35 8.74
1 1/4 32 160 28.6 64 42.2 73 81 6.35 111.1 60.33 6.35 8.74
1 1/2 40 180 31.8 70 48.3 83 92 6.35 123.8 68.27 6.35 8.74
2 50 215 38.1 105 60.3 102 124 7.92 165.1 95.25 7.92 11.91
2 1/2 65 245 41.3 124 73 105 137 7.92 190.5 107.95 7.92 11.91
3 80 265 47.7 133 88.9 117 168 7.92 203.2 136.53 7.92 11.91
4 100 310 54 162 114.3 124 194 7.92 241.3 161.93 7.92 11.91
5 125 375 73.1 197 141.3 156 229 7.92 292.1 193.68 7.92 11.91
6 150 395 82.6 229 168.3 171 248 9.53 317.5 211.14 9.53 13.49
8 200 485 92.1 292 219.1 213 318 11.13 393.7 269.88 11.13 16.66
10 250 585 108 368 273 254 371 11.13 482.6 323.85 11.13 16.66
12 300 675 123.9 451 323.8 283 438 14.27 571.5 381 14.27 23.01
14 350 750 133.4 495 355.6 298 489 15.88 635 419.1 15.88 26.97
16 400 825 146.1 552 406.4 311 546 17.48 704.8 469.9 17.48 30.18
18 450 915 162 597 457 327 613 17.48 774.7 533.4 17.48 30.18
20 500 985 177.8 641 508 356 673 17.48 831.8 584.2 17.48 33.32
24 600 1170 203.2 762 610 406 794 20.62 990.6 692.15 20.62 36.53
WN RTJ Flange Dimensions(Class 900):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 120 22.3 38 21.3 60 60.5 6.35 82.6 39.67 6.35 8.74 Refer Note
3/4 20 130 25.4 44 26.7 70 66.5 6.35 88.9 44.45 6.35 8.74
1 25 150 28.6 52 33.4 73 71.5 6.35 101.6 50.8 6.35 8.74
1 1/4 32 160 28.6 64 42.2 73 81 6.35 111.1 60.33 6.35 8.74
1 1/2 40 180 31.8 70 48.3 83 92 6.35 123.8 68.27 6.35 8.74
2 50 215 38.1 105 60.3 102 124 7.92 165.1 95.25 7.92 11.91
2 1/2 65 245 41.3 124 73 105 137 7.92 190.5 107.95 7.92 11.91
3 80 240 38.1 127 88.9 102 156 7.92 190.5 123.83 7.92 11.91
4 100 290 44.5 159 114.3 114 181 7.92 235 149.23 7.92 11.91
5 125 350 50.8 190 141.3 127 216 7.92 279.4 180.98 7.92 11.91
6 150 380 55.6 235 168.3 140 241 7.92 317.5 211.12 7.92 11.91
8 200 470 63.5 298 219.1 162 308 7.92 393.7 269.88 7.92 11.91
10 250 545 69.9 368 273 184 362 7.92 469.9 323.85 7.92 11.91
12 300 610 79.4 419 323.8 200 419 7.92 533.4 381 7.92 11.91
14 350 640 85.8 451 355.6 213 467 11.13 558.8 419.1 11.13 16.66
16 400 705 88.9 508 406.4 216 524 11.13 616 469.9 11.13 16.66
18 450 785 101.6 565 457 229 594 12.7 685.8 533.4 12.7 19.84
20 500 855 108 622 508 248 648 12.7 749.3 584.2 12.7 19.84
24 600 1040 139.7 749 610 292 772 15.88 901.7 692.15 15.88 26.97
WN RTJ Flange Dimensions(Class 600):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 14.3 38 21.3 52 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 15.9 48 26.7 57 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 17.5 54 33.4 62 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 20.7 64 42.2 67 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 22.3 70 48.3 70 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 25.4 84 60.3 73 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 28.6 100 73 79 127 7.92 149.2 101.6 7.92 11.91
3 80 210 31.8 117 88.9 83 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 35 133 101.6 86 159 7.92 184.2 131.78 7.92 11.91
4 100 275 38.1 152 114.3 102 175 7.92 215.9 149.23 7.92 11.91
5 125 330 44.5 189 141.3 114 210 7.92 266.7 180.98 7.92 11.91
6 150 355 47.7 222 168.3 117 241 7.92 292.1 211.12 7.92 11.91
8 200 420 55.6 273 219.1 133 302 7.92 349.2 269.88 7.92 11.91
10 250 510 63.5 343 273 152 356 7.92 431.8 323.85 7.92 11.91
12 300 560 66.7 400 323.8 156 413 7.92 489 381 7.92 11.91
14 350 605 69.9 432 355.6 165 457 7.92 527 419.1 7.92 11.91
16 400 685 76.2 495 406.4 178 508 7.92 603.2 469.9 7.92 11.91
18 450 745 82.6 546 457 184 575 7.92 654 533.4 7.92 11.91
20 500 815 88.9 610 508 190 635 9.53 723.9 584.2 9.53 13.49
24 600 940 101.6 718 610 203 749 11.13 838.2 692.15 11.13 16.66
WN RTJ Flange Dimensions(Class 400):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 14.3 38 21.3 52 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 15.9 48 26.7 57 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 17.5 54 33.4 62 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 20.7 64 42.2 67 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 22.3 70 48.3 70 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 25.4 84 60.3 73 108 7.92 127 82.55 7.92 11.9
2 1/2 65 190 28.6 100 73 79 127 7.92 149.2 101.6 7.92 11.9
3 80 210 31.8 117 88.9 83 146 7.92 168.3 123.83 7.92 11.9
3 1/2 90 230 35 133 101.6 86 159 7.92 184.2 131.78 7.92 11.9
4 100 255 35 146 114.3 89 175 7.92 200 149.23 7.92 11.91
5 125 280 38.1 178 141.3 102 210 7.92 235 180.98 7.92 11.91
6 150 320 41.3 206 168.3 103 241 7.92 269.9 211.12 7.92 11.91
8 200 380 47.7 260 219.1 117 302 7.92 330 269.88 7.92 11.91
10 250 445 54 321 273 124 356 7.92 387.4 323.85 7.92 11.91
12 300 520 57.2 375 323.8 137 413 7.92 450.8 381 7.92 11.91
14 350 585 60.4 425 355.6 149 457 7.92 514.4 419.1 7.92 11.91
16 400 650 63.5 483 406.4 152 508 7.92 571.5 469.9 7.92 11.91
18 450 710 66.7 533 457 165 575 7.92 628.6 533.4 7.92 11.91
20 500 775 69.9 587 508 168 635 9.53 685.8 584.2 9.53 13.49
24 600 915 76.2 702 610 175 749 11.13 812.8 692.15 11.13 16.66
WN RTJ Flange Dimensions(Class 300):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 95 12.7 38 21.3 51 51 5.54 66.7 34.14 5.54 7.14 Refer Note
3/4 20 115 14.3 48 26.7 56 63.5 6.35 82.6 42.88 6.35 8.74
1 25 125 15.9 54 33.4 60 70 6.35 88.9 50.8 6.35 8.74
1 1/4 32 135 17.5 64 42.2 64 79.5 6.35 98.4 60.33 6.35 8.74
1 1/2 40 155 19.1 70 48.3 67 90.5 6.35 114.3 68.27 6.35 8.74
2 50 165 20.7 84 60.3 68 108 7.92 127 82.55 7.92 11.91
2 1/2 65 190 23.9 100 73 75 127 7.92 149.2 101.6 7.92 11.91
3 80 210 27 117 88.9 78 146 7.92 168.3 123.83 7.92 11.91
3 1/2 90 230 28.6 133 101.6 79 159 7.92 184.2 131.78 7.92 11.91
4 100 255 30.2 146 114.3 84 175 7.92 200 149.23 7.92 11.91
5 125 280 33.4 178 141.3 97 210 7.92 235 180.98 7.92 11.91
6 150 320 35 206 168.3 97 241 7.92 269.9 211.12 7.92 11.91
8 200 380 39.7 260 219.1 110 302 7.92 330.2 269.88 7.92 11.91
10 250 445 46.1 321 273 116 356 7.92 387.4 323.85 7.92 11.91
12 300 520 49.3 375 323.8 129 413 7.92 450.8 381 7.92 11.91
14 350 585 52.4 425 355.6 141 457 7.92 514.4 419.1 7.92 11.91
16 400 650 55.6 483 406.4 144 508 7.92 571.5 469.9 7.92 11.91
18 450 710 58.8 533 457 157 575 7.92 628.6 533.4 7.92 11.91
20 500 775 62 587 508 160 635 9.53 685.8 584.2 9.53 13.49
24 600 915 68.3 702 610 167 749 11.13 812.8 692.15 11.13 16.66
WN RTJ Flange Dimensions(Class 150):
Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Weld Neck OD Welding Neck Length RTJ RF Dia RTJ RF Height PCD RTJ Pitch dia RTJ Depth RTJ Width Bore
A B C D E F G H I J K L
1/2 15 90 9.6 30 21.3 46 N/A N/A 60.3 N/A N/A N/A Refer Note
3/4 20 100 11.2 38 26.7 51 N/A N/A 69.9 N/A N/A N/A
1 25 110 12.7 49 33.4 54 63.5 6.35 79.4 47.63 6.35 8.74
1 1/4 32 115 14.3 59 42.2 56 73 6.35 88.9 57.15 6.35 8.74
1 1/2 40 125 15.9 65 48.3 60 82.5 6.35 98.4 65.07 6.35 8.74
2 50 150 17.5 78 60.3 62 102 6.35 120.7 82.55 6.35 8.74
2 1/2 65 180 20.7 90 73 68 121 6.35 139.7 101.6 6.35 8.74
3 80 190 22.3 108 88.9 68 133 6.35 152.4 114.3 6.35 8.74
3 1/2 90 215 22.3 122 101.6 70 154 6.35 177.8 131.78 6.35 8.74
4 100 230 22.3 135 114.3 75 171 6.35 190.5 149.23 6.35 8.74
5 125 255 22.3 164 141.3 87 194 6.35 215.9 171.45 6.35 8.74
6 150 280 23.9 192 168.3 87 219 6.35 241.3 193.68 6.35 8.74
8 200 345 27 246 219.1 100 273 6.35 298.5 247.65 6.35 8.74
10 250 405 28.6 305 273 100 330 6.35 362 304.8 6.35 8.74
12 300 485 30.2 365 323.8 113 406 6.35 431.8 381 6.35 8.74
14 350 535 33.4 400 355.6 125 425 6.35 476.3 396.88 6.35 8.74
16 400 595 35 457 406.4 125 483 6.35 539.8 454.03 6.35 8.74
18 450 635 38.1 505 457.2 138 546 6.35 577.9 517.53 6.35 8.74
20 500 700 41.3 559 508 143 597 6.35 635 558.8 6.35 8.74
24 600 815 46.1 663 610 151 711 6.35 749.3 673.1 6.35 8.74
IMP. NOTE: WN bore is derived from the pipe schedule

Manufacturing Process of Ring Type Joint Flanges

We have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our Ring Joint Flanges are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also accept Third Party Inspection appointed by our clients.
Raw Material
Raw Material
  • » Raw Material Check
  • » Quantity Check
  • » Visual & Dimension Check
Material Inspection
Material Inspection
  • » Chemical Analysis Check
  • » Preservation Analysis Certificate
Material Cutting
Material Cutting
  • » Weight Measuring
  • » Cut Surface Check
  • » Marking
Flange Forging
Flange Forging
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Control
Heat Treatment
Heat Treatment
  • » Normalizing
  • » Tempering, Q.T
  • » Solution Treatment
  • » Mechanical Test
Forging Rolling
Forging Rolling
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Check
  • » Dimension Check
Final Inspection
Final Inspection
  • » Dimension size inspect
  • » Visual Test
  • » Nondestructive Test
Rust Prevention
Rust Prevention
  • » Preserve Check
  • » Marking on the flange
  • » Tectyl 506or Pickling or etc. Coating
Well Packing
Well Packing
  • » Packing Spec. Check
  • » Packing Inspection
  • » Delivery

Ring Type Joint Flanges Applications & Uses

Today M P Jain Tubing Solutions LLP is one of the leading manufacturer, stockists, and exporters of RTJ Flanges and supplying to various core industries like
Chemicals Fertilizers Industries
Chemicals Fertilizers Industries
Heat Exchanger
Heat Exchanger
Instrumentation
Instrumentation
Nuclear Thermal Industries
Nuclear Thermal Industries
Oil Gas Industries
Oil Gas Industries
Pharmacy Surgical Industries
Pharmacy Surgical Industries
Refineries Petrochemicals
Refineries Petrochemicals
Water Gas Piping Systems
Water Gas Piping Systems

Cities We Export Ring Type Joint Flanges

  • Mumbai
  • Thane
  • Navi Mumbai
  • Pune
  • Pimpri-Chinchwad
  • Vadodara
  • Kolkata
  • Gurgaon
  • Ahmedabad
  • New Delhi
  • Bengaluru
  • Chennai
  • Surat
  • New York
  • Caracas
  • Howrah
  • Sydney
  • Ahvaz
  • Karachi
  • Algiers
  • Chiyoda
  • Ankara
  • Ho Chi Minh City
  • Bhopal
  • Ulsan
  • Faridabad
  • Houston
  • Dubai
  • Seoul
  • Hyderabad
  • Singapore
  • Abu Dhabi
  • Tehran
  • Calgary
  • Noida
  • Riyadh
  • Vung Tau
  • Al Khobar
  • Atyrau
  • Lagos
  • Hanoi
  • Toronto
  • Hong Kong
  • Rajkot
  • Brisbane
  • Los Angeles
  • London
  • Coimbatore
  • Jakarta
  • Istanbul
  • Bangkok
  • Kuwait City
  • Sharjah
  • Muscat
  • Edmonton
  • Busan
  • Mexico City
  • Doha
  • Jeddah
  • Manama
  • Montreal
  • Thiruvananthapuram
  • Milan
  • Moscow
  • Dallas
  • Petaling Jaya
  • Ernakulam
  • Visakhapatnam
  • Ludhiana
  • Aberdeen
  • Cairo
  • Geoje-si
  • Perth
  • Santiago
  • Chandigarh
  • Indore
  • Kuala Lumpur
  • Rio de Janeiro
  • Dammam
  • Melbourne
  • Madrid
  • La Victoria
  • Granada
  • Courbevoie
  • Al Jubail
  • Port-of-Spain
  • Secunderabad
  • Gimhae-si
  • Haryana
  • Colombo
  • Lahore
  • Bogota

Countries We Export Ring Type Joint Flanges

  • India
  • Saudi Arabia
  • Bangladesh
  • United States
  • United Arab Emirates
  • Canada
  • Angola
  • Argentina
  • Austria
  • Azerbaijan
  • Pakistan
  • Peru
  • Chile
  • Yemen
  • Hong Kong
  • Croatia
  • Czech Republic
  • Estonia
  • South Africa
  • Nigeria
  • Mexico
  • Turkey
  • Spain
  • France
  • United Kingdom
  • Indonesia
  • Israel
  • Iran
  • Kuwait
  • Mexico
  • Malaysia
  • Nigeria
  • Serbia
  • Singapore
  • Taiwan
  • Gabon
  • China
  • Finland
  • Greece
  • Italy
  • Japan
  • Hungary
  • Algeria
  • Belarus
  • Belgium
  • Chile
  • Venezuela
  • Ecuador
  • Netherlands
  • Brazil
  • Colombia
  • Ghana
  • Iran
  • Denmark
  • Poland
  • Australia
  • Afghanistan
  • Bahrain
  • Portugal
  • Switzerland
  • Libya
  • Romania
  • Thailand
  • Bhutan
  • Bolivia
  • Bulgaria
  • Slovakia
  • Vietnam
  • Costa Rica
  • Egypt
  • Iraq
  • Jordan
  • Kazakhstan
  • South Korea
  • Sri Lanka
  • Lithuania
  • Norway
  • Oman
  • Philippines
  • Poland
  • Qatar
  • New Zealand
  • Sweden
  • Trinidad & Tobago
  • Tunisia
  • Ukraine
  • Kenya
  • Lebanon
  • Morocco
  • Mongolia
  • Russia
Summary
Review Date
Reviewed Item
Ring Type Joint Flanges
Author Rating
51star1star1star1star1star

Worldwide Exporters of Buttweld Fittings, Forged Fittings, Flanges and Fasteners
