Screwed Flanges

MPJain » Pipe Flanges » Screwed Flanges

Authoritative ANSI B16.5 / ASME B16.47 Screwed Flange Manufacturers in India.

ANSI B16.5 / ASME B16.47 Screwed Flange Manufacturer in India

As one of the leaders amongst Manufacturers, Stockist, and Exporters of Raised Face Screwed Flange, ASME B16.5 / ANSI B16.47 Screwed Flange, We are offering competitive prices in India on DIN Screwed Flange, Series A & B Screwed Flange, MSS Screwed Flange.

We keep adequate stock of SS Screwed Flanges, Alloy Steel Screwed Flanges, Nickel Alloy 200 Screwed Flanges, Carbon Steel Screwed Flanges, Inconel Screwed Flanges, Hastelloy Screwed Flanges, Copper Nickel Screwed Flanges, Duplex & Super Duplex Screwed Flanges, Alloy 20 Screwed Flanges in all Dimensions to satisfy any small and large quantity orders from our valuable customers.

Contact Us
PROFESSIONALLY MANAGED MANUFACTURING OF STAINLESS STEEL SCREWED FLANGE / DUPLEX STEEL SCREWED FLANGE / CARBON STEEL SCREWED FLANGE / ALLOY STEEL SCREWED FLANGE / HASTELLOY STEEL SCREWED FLANGE / MONEL STEEL SCREWED FLANGE / INCONEL STEEL SCREWED FLANGE / SUPER DUPLEX STEEL SCREWED FLANGE / INCOLOY STEEL SCREWED FLANGE / ALLOY 20 SCREWED FLANGE / 6% MOLY SCREWED FLANGE / COPPER NICKEL STEEL SCREWED FLANGE / NICKEL ALLOYS SCREWED FLANGE / CUPRO NICKEL SCREWED FLANGE / TITANIUM SCREWED FLANGE / ALUMINIUM SCREWED FLANGE / BRONZE SCREWED FLANGE / BRASS SCREWED FLANGE
Popular Product Searches on M P Jain Tubing Solutions LLP: SO Flange | WN Flange | BL Flange | LJ Flange | Threaded Flange | SW Flange | Flat Flange | RTJ Flange | Spectacle Flange | High Hub Flange | Orifice Flange | Reducing Flange | Square Flange | Tongue Flange | LWN Flange | Spade Ring Spacer | Nipo / Weldo Flange | Expander Flange

What is a Screwed Flange

Screwed flange are often used for small diameter, high pressure requirements. Screwed flanges with a hub have published specifications that range from 1/2″ thru 24″. Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250 and Facing: RF / RTJ

Screwed flanges are threaded in the bore which match an external thread on the pipe. Screwed flanges are used with pipes that have external threads. The benefit of these flanges is that it can be attached without welding.

Screwed Flange Specifications

Type : Screwed Flanges
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Screwed Flange Materials & Grades

Materials : Standard, Grades
Stainless Steel Screwed Flange : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Screwed Flange : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Screwed Flange : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Screwed Flange : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Screwed Flange : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Screwed Flange : ASTM A350 LF2, LF3, LF6
High Yield Screwed Flange : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Screwed Flange : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Screwed Flange : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Screwed Flange : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Screwed Flange : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Screwed Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of Raised Face Screwed Flange Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 Screwed Flange. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever-changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Screwed Flanges in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan, Israel etc.

Screwed Flange Price List

Following is Raised Face Screwed Flange price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.
  • » stainless steel F304 screwed flange: USD $2-9 / Piece
  • » screwed flange: USD $1-11 / Piece
  • » F60 screwed flange: USD $3-10 / Piece
  • » A105 Forged Asme ANSI Threaded Screwed : USD $2-4000 / Piece
  • » flat-face screwed flanges: USD $10-300 / Piece
  • » ss316 screwed boss flanges: US $1-15 / Piece
  • » Screwed forged stainless steel dn150 flange: USD $5.20-20 / Piece
  • » Screwed Threaded Type PN6-PN40 DIN Raised Face Flat Face Flange: USD $10-100 / Piece
  • » DIN Flange PN6 Screwed: USD $1.1-99 / Piece
  • » welded flange lap joint flange screwed flange: USD $1 – 244 / Piece
    • » carbon steel screwed flat face 1600/4 forged flange: USD $50 – 1,000 / Piece
Latest Screwed Flange Price in Inda

Reference:alibaba

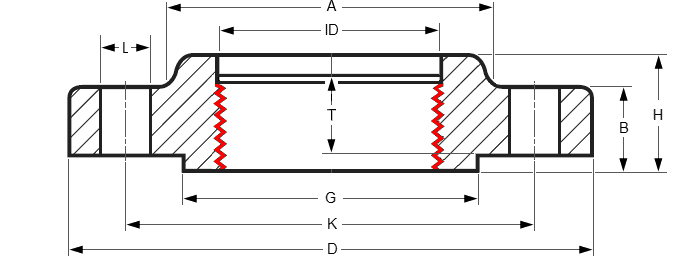

ASME B16.5 Screwed Flange Dimensions:

Screwed Flange Dimensions DIN2565 PN6 Screwed Flange
Rated
Diameter		 d1 Flange Neck Raised face Screws Weight of a flange
(7,85 Kg/dm3)
Thread D b k h1 d3 d4 f Number Thread d2 Kg
15 21,3 R 1/2 80 12 55 20 30 40 2 4 M 10 11 0,373
20 26,9 R 3/4 90 14 65 24 40 50 2 4 M 10 11 0,59
25 33,7 R 1 100 14 75 24 50 60 2 4 M 10 11 0,743
32 42,4 R 1 1/4 120 14 90 26 60 70 2 4 M 12 14 1,05
40 48,3 R 1 1/2 130 14 100 26 70 80 3 4 M 12 14 1,2
50 60,3 R 2 140 14 110 28 80 90 3 4 M 12 14 1,37
65 76,1 R 2 1/2 160 14 130 32 100 110 3 4 M 12 14 1,92
80 88,9 R 3 190 16 150 34 110 128 3 4 M 16 18 2,82
100 114,3 R 4 210 16 170 38 130 148 3 4 M 16 18 3,19
125 139,7 R 5 240 18 200 40 160 178 3 8 M 16 18 4,47
150 165,1 R 6 265 18 225 44 185 202 3 8 M 16 18 5,3
DIN2566 PN10/PN16 Screwed Flange
Rated
Diameter		 d1 Flange Diemnsion Neck Raised face Screws
Dimension		 Weight of a flange
(7,85 Kg/dm3)
Thread D b k h1 d3 d4 f Number Thread d2 Kg
15 21,3 R 1/2 95 14 65 20 35 45 2 4 M 12 14 0,613
20 26,9 R 3/4 105 16 75 24 45 58 2 4 M 12 14 0,91
25 33,7 R 1 115 16 85 24 52 68 2 4 M 12 14 1,1
32 42,4 R 1 1/4 140 16 100 26 60 78 2 4 M 16 18 1,6
40 48,3 R 1 1/2 150 16 110 26 70 88 3 4 M 16 18 1,78
50 60,3 R 2 165 18 125 28 85 102 3 4 M 16 18 2,43
65 76,1 R 2 1/2 185 18 145 32 105 122 3 4 M 16 18 3,18
80 88,9 R 3 200 20 160 34 118 138 3 8 M 16 18 4,12
100 114,3 R 4 220 20 180 38 140 158 3 8 M 16 18 4,47
125 139,7 R 5 250 22 210 40 168 188 3 8 M 16 18 6,13
150 165,1 R 6 285 22 240 44 195 212 3 8 M 20 22 7,92
ASME/ANSI B16.5 Screwed Flange Class 150 TH
Nominal Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flanges Min. Diameter of Hub Length Through Hub Thread Length Threaded Min. Bore Diameter of Bolt Circle Diameter of Bolt Holes Number of Bolts Approximate Weight kgs
NPS O R tf X Y T B W I n 　
1/2 90 34.9 9.6 30 14 16 22.2 60.3 15.9 4 0.41
3/4 100 42.9 11.2 38 14 16 27.7 69.9 15.9 4 0.59
1 110 50.8 12.7 49 16 17 34.5 79.4 15.9 4 0.82
1 1/4 115 63.5 14.3 59 19 21 43.2 88.9 15.9 4 0.99
1 1/2 125 73.0 15.9 65 21 22 49.5 98.4 15.9 4 1.28
2 150 92.1 17.5 78 24 25 61.9 120.7 19.1 4 2.01
2 1/2 180 104.8 20.7 90 27 29 74.6 139.7 19.1 4 3.41
3 190 127.0 22.3 108 29 30 90.7 152.4 19.1 4 3.88
3 1/2 215 139.7 22.3 122 30 32 103.4 177.8 19.1 8 4.80
4 230 157.2 22.3 135 32 33 116.1 190.5 19.1 8 5.45
5 255 185.7 22.3 164 35 36 143.8 215.9 22.2 8 6.22
6 280 215.9 23.9 192 38 40 170.7 241.3 22.2 8 7.57
8 345 269.9 27.0 246 43 44 221.5 298.5 22.2 8 12.42
10 405 323.8 28.6 305 48 49 276.2 362.0 25.4 12 16.47
12 485 381.0 30.2 365 54 56 327.0 431.8 25.4 12 26.80
14 535 412.8 33.4 400 56 57 359.2 476.3 28.6 12 35.21
16 595 469.9 35.0 457 62 64 410.5 539.8 28.6 16 44.61
18 635 533.4 38.1 505 67 68 461.8 577.9 31.8 16 49.19
20 700 584.2 41.3 559 71 73 513.1 635.0 31.8 20 62.62
24 815 692.2 46.1 663 81 83 616.0 749.3 34.9 20 88.23
ASME/ANSI B16.5 Screwed Flange Class 300 TH
Nominal Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flanges Min. Diameter of Hub Length Through Hub Thread Length Threaded Min. Bore Counter-bore Threaded Flange, Min. Diameter of Bolt Circle Diameter of Bolt Holes Number of Bolts Approxi-mate Weight kgs
NPS O R tf X Y T B Q W I n 　
1/2 95 34.9 12.7 38 21 16 22.2 23.6 66.7 15.9 4 0.65
3/4 115 42.9 14.3 48 24 16 27.7 29.0 82.6 19.1 4 1.08
1 125 50.8 15.9 54 25 18 34.5 35.8 88.9 19.1 4 1.39
1 1/4 135 63.5 17.5 64 25 21 43.2 44.4 98.4 19.1 4 1.74
1 1/2 155 73.0 19.1 70 29 23 49.5 50.3 114.3 22.2 4 2.49
2 165 92.1 20.7 84 32 29 61.9 63.5 127.0 19.1 8 2.90
2 1/2 190 104.8 23.9 100 37 32 74.6 76.2 149.2 22.2 8 4.35
3 210 127.0 27.0 117 41 32 90.7 92.2 168.3 22.2 8 5.89
3 1/2 230 139.7 28.6 133 43 37 103.4 104.9 184.2 22.2 8 7.48
4 255 157.2 30.2 146 46 37 116.1 117.6 200.0 22.2 8 9.77
5 280 185.7 33.4 178 49 43 143.8 144.4 235.0 22.2 8 12.31
6 320 215.9 35.0 206 51 47 170.7 171.4 269.9 22.2 12 16.07
8 380 269.9 39.7 260 60 51 221.5 222.2 330.2 25.4 12 24.07
10 445 323.8 46.1 321 65 56 276.2 276.2 387.4 28.6 16 34.38
12 520 381.0 49.3 375 71 61 327.0 328.6 450.8 31.8 16 49.80
14 585 412.8 52.4 425 75 64 359.2 360.4 514.4 31.8 20 70.12
16 650 469.9 55.6 483 81 69 410.5 411.2 571.5 34.9 20 89.56
18 710 533.4 58.8 533 87 70 461.8 462.0 628.6 34.9 24 108.10
20 775 584.2 62.0 587 94 74 513.1 512.8 685.8 34.9 24 134.87
24 915 692.2 68.3 702 105 83 616.0 614.4 812.8 41.3 24 202.58
ASME/ANSI B16.5 Screwed Flange Class 600 TH
Nominal Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flanges Min. Diameter of Hub Length Through Hub Thread Length Threaded Min. Bore Counter-bore Threaded Flange, Min. Diameter of Bolt Circle Diameter of Bolt Holes Number of Bolts Approxi-mate Weight kgs
NPS O R tf X Y T B Q W I n
1/2 95 34.9 14.3 38 22 16 22.2 23.6 66.7 15.9 4 0.74
3/4 115 42.9 15.9 48 25 16 27.7 29.0 82.6 19.1 4 1.21
1 125 50.8 17.5 54 27 18 34.5 35.8 88.9 19.1 4 1.56
1 1/4 135 63.5 20.7 64 29 21 43.2 44.4 98.4 19.1 4 2.11
1 1/2 155 73.0 22.3 70 32 23 49.5 50.6 114.3 22.2 4 2.97
2 165 92.1 25.4 84 37 29 61.9 63.5 127.0 19.1 8 3.64
2 1/2 190 104.8 28.6 100 41 32 74.6 76.2 149.2 22.2 8 5.26
3 210 127.0 31.8 117 46 35 90.7 92.2 168.3 22.2 8 7.08
3 1/2 230 139.7 35.0 133 49 40 103.4 104.9 184.2 25.4 8 8.99
4 275 157.2 38.1 152 54 42 116.1 117.6 215.9 25.4 8 14.83
5 330 185.7 44.5 189 60 48 143.8 144.4 266.7 28.6 8 24.46
6 355 215.9 47.7 222 67 51 170.7 171.4 292.1 28.6 12 28.78
8 420 269.9 55.6 273 76 58 221.5 222.2 349.2 31.8 12 43.77
10 510 323.8 63.5 343 86 66 276.2 276.2 431.8 34.9 16 71.35
12 560 381.0 66.7 400 92 70 327.0 328.6 489.0 34.9 20 84.95
14 605 412.8 69.9 432 94 74 359.2 360.4 527.0 38.1 20 100.05
16 685 469.9 76.2 495 106 78 410.5 411.2 603.2 41.3 20 141.69
18 745 533.4 82.6 546 117 80 461.8 462.0 654.0 44.5 20 175.13
20 815 584.2 88.9 610 127 83 513.1 512.8 723.9 44.5 24 222.87
24 940 692.2 101.6 718 140 93 616.0 614.4 838.2 50.8 24 313.75
ASME/ANSI B16.5 Screwed Flange Class 900 TH
Nominal Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flanges Min. Diameter of Hub Length Through Hub Thread Length Threaded Min. Bore Counter-bore Threaded Flange, Min., Diameter of Bolt Circle Diameter of Bolt Holes Number of Bolts Approxi-mate Weight kgs
NPS O R tf X Y T B Q W I n 　
1/2 120 34.9 22.3 38 32 23 22.2 23.6 82.6 22.2 4 1.73
3/4 130 42.9 25.4 44 35 26 27.7 29.0 88.9 22.2 4 2.33
1 150 50.8 28.6 52 41 29 34.5 35.8 101.6 25.4 4 3.48
1 1/4 160 63.5 28.6 64 41 31 43.2 44.4 111.1 25.4 4 4.00
1 1/2 180 73.0 31.8 70 44 32 49.5 50.3 123.8 28.6 4 5.54
2 215 92.1 38.1 105 57 39 61.9 63.5 165.1 25.4 8 9.79
2 1/2 245 104.8 41.3 124 64 48 74.6 76.2 190.5 28.6 8 13.82
3 240 127.0 38.1 127 54 42 90.7 92.2 190.5 25.4 8 11.51
4 290 157.2 44.5 159 70 48 116.1 117.6 235.0 31.8 8 19.52
5 350 185.7 50.8 190 79 54 143.8 144.4 279.4 34.9 8 32.14
6 380 215.9 55.6 235 86 58 170.7 171.4 317.5 31.8 12 41.04
8 470 269.9 63.5 298 102 64 221.5 222.2 393.7 38.1 12 70.97
10 545 323.8 69.9 368 108 72 276.2 276.2 469.9 38.1 16 100.32
12 610 381.0 79.4 419 117 77 327.0 328.6 533.4 38.1 20 133.26
14 640 412.8 85.8 451 130 83 359.2 360.4 558.8 41.3 20 152.57
16 705 469.9 88.9 508 133 86 410.5 411.2 616.0 44.5 20 185.15
18 785 533.4 101.6 565 152 89 461.8 462.0 685.8 50.8 20 256.28
20 855 584.2 108.0 622 159 93 513.1 512.8 749.3 54.0 20 315.13
24 1040 692.2 139.7 749 203 102 616.0 614.4 901.7 66.7 20 603.79

Manufacturing Process of Screwed Flange

We have Skilled staff to maintain the quality of products throughout the manufacturing process from selection of raw material to processing, marking, packaging, storage, and transportation. Our Raised Face Screwed Flange are 100% inspected before being packed and dispatched & all our materials are tested to International standards. Sometimes we also accept Third Party Inspection appointed by our clients.
Raw Material
Raw Material
  • » Raw Material Check
  • » Quantity Check
  • » Visual & Dimension Check
Material Inspection
Material Inspection
  • » Chemical Analysis Check
  • » Preservation Analysis Certificate
Material Cutting
Material Cutting
  • » Weight Measuring
  • » Cut Surface Check
  • » Marking
Flange Forging
Flange Forging
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Control
Heat Treatment
Heat Treatment
  • » Normalizing
  • » Tempering, Q.T
  • » Solution Treatment
  • » Mechanical Test
Forging Rolling
Forging Rolling
  • » Material Grade Check
  • » Weight Measuring
  • » Temperature Check
  • » Dimension Check
Final Inspection
Final Inspection
  • » Dimension size inspect
  • » Visual Test
  • » Nondestructive Test
Rust Prevention
Rust Prevention
  • » Preserve Check
  • » Marking on the flange
  • » Tectyl 506or Pickling or etc. Coating
Well Packing
Well Packing
  • » Packing Spec. Check
  • » Packing Inspection
  • » Delivery

Screwed Flange Applications & Uses

Today M P Jain Tubing Solutions LLP is one of the leading manufacturer, stockists, and exporters of Screwed Flanges and supplying to various core industries like
Chemicals Fertilizers Industries
Chemicals Fertilizers Industries
Heat Exchanger
Heat Exchanger
Instrumentation
Instrumentation
Nuclear Thermal Industries
Nuclear Thermal Industries
Oil Gas Industries
Oil Gas Industries
Pharmacy Surgical Industries
Pharmacy Surgical Industries
Refineries Petrochemicals
Refineries Petrochemicals
Water Gas Piping Systems
Water Gas Piping Systems

Cities We Export Screwed Flange

  • Mumbai
  • Thane
  • Navi Mumbai
  • Pune
  • Pimpri-Chinchwad
  • Vadodara
  • Kolkata
  • Gurgaon
  • Ahmedabad
  • New Delhi
  • Bengaluru
  • Chennai
  • Surat
  • New York
  • Caracas
  • Howrah
  • Sydney
  • Ahvaz
  • Karachi
  • Algiers
  • Chiyoda
  • Ankara
  • Ho Chi Minh City
  • Bhopal
  • Ulsan
  • Faridabad
  • Houston
  • Dubai
  • Seoul
  • Hyderabad
  • Singapore
  • Abu Dhabi
  • Tehran
  • Calgary
  • Noida
  • Riyadh
  • Vung Tau
  • Al Khobar
  • Atyrau
  • Lagos
  • Hanoi
  • Toronto
  • Hong Kong
  • Rajkot
  • Brisbane
  • Los Angeles
  • London
  • Coimbatore
  • Jakarta
  • Istanbul
  • Bangkok
  • Kuwait City
  • Sharjah
  • Muscat
  • Edmonton
  • Busan
  • Mexico City
  • Doha
  • Jeddah
  • Manama
  • Montreal
  • Thiruvananthapuram
  • Milan
  • Moscow
  • Dallas
  • Petaling Jaya
  • Ernakulam
  • Visakhapatnam
  • Ludhiana
  • Aberdeen
  • Cairo
  • Geoje-si
  • Perth
  • Santiago
  • Chandigarh
  • Indore
  • Kuala Lumpur
  • Rio de Janeiro
  • Dammam
  • Melbourne
  • Madrid
  • La Victoria
  • Granada
  • Courbevoie
  • Al Jubail
  • Port-of-Spain
  • Secunderabad
  • Gimhae-si
  • Haryana
  • Colombo
  • Lahore
  • Bogota

Countries We Export Screwed Flange

  • India
  • Saudi Arabia
  • Bangladesh
  • United States
  • United Arab Emirates
  • Canada
  • Angola
  • Argentina
  • Austria
  • Azerbaijan
  • Pakistan
  • Peru
  • Chile
  • Yemen
  • Hong Kong
  • Croatia
  • Czech Republic
  • Estonia
  • South Africa
  • Nigeria
  • Mexico
  • Turkey
  • Spain
  • France
  • United Kingdom
  • Indonesia
  • Israel
  • Iran
  • Kuwait
  • Mexico
  • Malaysia
  • Nigeria
  • Serbia
  • Singapore
  • Taiwan
  • Gabon
  • China
  • Finland
  • Greece
  • Italy
  • Japan
  • Hungary
  • Algeria
  • Belarus
  • Belgium
  • Chile
  • Venezuela
  • Ecuador
  • Netherlands
  • Brazil
  • Colombia
  • Ghana
  • Iran
  • Denmark
  • Poland
  • Australia
  • Afghanistan
  • Bahrain
  • Portugal
  • Switzerland
  • Libya
  • Romania
  • Thailand
  • Bhutan
  • Bolivia
  • Bulgaria
  • Slovakia
  • Vietnam
  • Costa Rica
  • Egypt
  • Iraq
  • Jordan
  • Kazakhstan
  • South Korea
  • Sri Lanka
  • Lithuania
  • Norway
  • Oman
  • Philippines
  • Poland
  • Qatar
  • New Zealand
  • Sweden
  • Trinidad & Tobago
  • Tunisia
  • Ukraine
  • Kenya
  • Lebanon
  • Morocco
  • Mongolia
  • Russia
Summary
Review Date
Reviewed Item
Screwed Flange
Author Rating
51star1star1star1star1star

Worldwide Exporters of Buttweld Fittings, Forged Fittings, Flanges and Fasteners
