What is a Threaded Flanges

Threaded Flanges are also known as a screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe. Threaded Flanges are mostly used in utility services such as air and water.

The benefit of these Threaded Pipe Flanges is that it can be attached without welding. When a raised face is necessary for threaded pipe flanges, the standard height is 1/16″ for threaded pipe flanges under 400#. For threaded pipe flanges of 400# and up, the standard threaded pipe flange raised face height is 1/4″.

Threaded Flanges Specifications

Type : Threaded Forged / Cast Flange
Size : ½” (15 NB) to 48″ (1200NB)
Standard : ANSI B16.5, ANSI B16.47, ANSI B16.36, ANSI B16.48, BS 4504, EN1092, UNI 2277/2278, DIN, JIS, SABS1123, GOST-12820
Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
BS : BS4504 , BS4504, BS1560, BS10
In Form : SORF, WNRF, BLRF, SWRF, LAP Joint, Threaded, Reducing, Spectacle, etc
Specialize : As per drawing
Coating/Surface Treatment : Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Connection Type : Ring Type Joint, Lap-Joint Face, Raised Face, Flat Face, Large Male-Female, Small Male-Female, Large
Tongue & Groove, Small Tongue & Groove
Flange Face Type : Flat Face (FF), Raise Face (RF), Ring Joint (RJT)
Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Packing : No Fumigate or Fumigate Plywood/Wood Pallet or Case
Usage : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Threaded Flanges Materials & Grades

Materials : Standard, Grades
Stainless Steel Threaded Flanges : ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L
Carbon Steel Threaded Flanges : ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52,
F60, F65, F70
Alloy Steel Threaded Flanges : ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91
Duplex Steel Threaded Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
6% Moly / Super Duplex Threaded Flanges : ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61
Low Temperature Steel Threaded Flanges : ASTM A350 LF2, LF3, LF6
High Yield Threaded Flanges : ASTM A694 F42, F52, F60, F65, F70
Nickel Alloys Threaded Flanges : ASTM SB564, SB160, SB472, SB162 – Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020)
Copper Alloys Threaded Flanges : ASTM SB 61 , SB62 , SB151 , SB152 – UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200
Alloys Threaded Flanges : ALLOY 20, ALLOY C, ALLOY C276, ALLOY B2
Other Grade of Threaded Flanges : Bronze, Brass, Cupro Nickel, Titanium, Inconel, Monel, Hastelloy

Why Choose M P Jain Tubing Solutions LLP

  • » M P Jain Tubing Solutions LLP welcome small and large quantity orders and are capable of manufacture Threaded Flanges according to drawings provided by customers.
  • » An ISO / OHSAS / PED Certified Stockist and Exporters of THRF Flanges Manufactured with the finest quality raw materials (Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Cupro Nickel, Alloy 20, Carbon Steel, etc.) results in High-Quality End Products.
  • » With the quality, we also guarantee On-Time Delivery of ASME B16.5/B16.47 TH Flanges. If clients have any query regarding purchased products they can chat with our support team live on a website (24/7 support service) or they can mail us on exports@mpjainco.com.
  • » Our state-of-the-art infrastructure is located in the industrial hub, Mumbai India and we possess a team of highly qualified as well as experienced professionals. We continuously keep on upgrading our machinery to meet the challenges of fiercely competitive and ever changing market demands.
  • » We believe that along with Competitive Prices, the Quality performance of products and customer satisfaction are the basis for growth and success of our business. We tend to present innovative solutions and services to our customers.
  • » Since 1972 we are in this business and Manufacturing Threaded Flanges in different standards like ANSI, ASME, BS, DIN, API. Product Supplied by us are accepted by Client’s in various industries small basic industries such as Textile, Paper, Engineering, Sugar, Dairy, Cement to more complex such as Petrochemical, Oil & Gas, Power, Onshore & Offshore ETC. Our main export market is Bahrain, Bangladesh, Iraq, Japan, Jordan, Kazakhstan, Lebanon, Myanmar, Oman, Philippines, Qatar, Saudi Arabia, Sri Lanka, Thailand, Turkey, UAE, Uzbekistan etc.

Threaded Flanges Price List

Following is Threaded (THRF) Flanges price in India. This price range also depends on minimum order and might vary without any prior information. For more details contact us now and get Instant Quote.
Latest Threaded Flange Price in Inda

Reference:alibaba

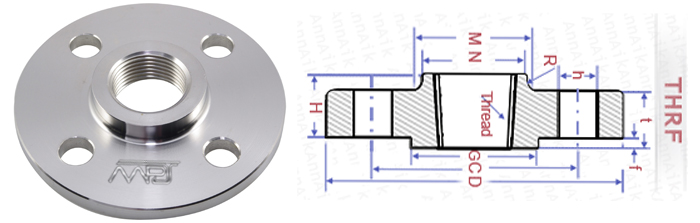

ASME B16.5 Threaded Flanges Dimensions:

Threaded Flange Dimensions Threaded Flanges 150 Lbs Dimensions:

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2″ 90 9.6 35.05 30 14 4 15.87 60.3
3/4″ 100 11.2 42.92 38 14 4 15.87 69.9
1″ 110 12.7 50.80 49 16 4 15.87 79.4
1 1/4″ 115 14.3 63.50 59 19 4 15.87 88.9
1 1/2″ 125 15.9 73.15 65 21 4 15.87 98.4
2″ 150 17.5 91.94 78 24 4 19.05 120.7
2 1/2″ 180 20.7 104.65 90 27 4 19.05 139.7
3″ 190 22.3 127.00 108 29 4 19.05 152.4
3 1/2″ 215 22.3 139.70 122 30 8 19.05 177.8
4″ 230 22.3 157.22 135 32 8 19.05 190.5
5″ 255 22.3 185.67 164 35 8 22.22 215.9
6″ 280 23.9 215.90 192 38 8 22.22 241.3
8″ 345 27.0 269.75 246 43 8 22.22 298.5
10″ 405 28.6 323.85 305 48 12 25.40 362.0
12″ 485 30.2 381.00 365 54 12 25.40 431.8
14″ 535 33.4 412.75 400 56 12 28.57 476.3
16″ 595 35.0 469.90 457 62 16 28.57 539.8
18″ 635 38.1 533.40 505 67 16 31.75 577.9
20″ 700 41.3 584.20 559 71 20 31.75 635.0
24″ 815 46.1 692.15 663 81 20 34.92 749.3
IMP. NOTES: 1,6mm raised face not included in the E & H dimensions
Threaded Flanges 300 Lbs Dimensions:

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2″ 95 12.7 35.05 38 23.6 21 4 15.87 66.7
3/4″ 115 14.3 42.92 48 29.0 24 4 19.05 82.6
1″ 125 15.9 50.80 54 35.8 25 4 19.05 88.9
1 1/4″ 135 17.5 63.50 64 44.4 25 4 19.05 98.4
1 1/2″ 155 19.1 73.15 70 50.3 29 8 22.22 114.3
2″ 165 20.7 91.94 84 63.5 32 8 19.05 127.0
2 1/2″ 190 23.9 104.65 100 76.2 37 8 22.22 149.2
3″ 210 27.0 127.00 117 92.2 41 8 22.22 168.3
3 1/2″ 230 28.6 139.70 133 104.9 43 8 22.22 184.2
4″ 255 30.2 157.22 146 117.6 46 8 22.22 200.0
5″ 280 33.4 185.67 178 144.4 49 8 22.22 235.0
6″ 320 35.0 215.90 206 171.4 51 12 22.22 269.9
8″ 380 39.7 269.75 260 222.2 60 12 25.40 330.2
10″ 445 46.1 323.85 321 276.2 65 16 28.57 387.4
12″ 520 49.3 381.00 375 328.6 71 16 31.75 450.8
14″ 585 52.4 412.75 425 360.4 75 20 31.75 514.4
16″ 650 55.6 469.90 483 411.2 81 20 34.92 571.5
18″ 710 58.8 533.40 533 462.0 87 24 34.92 628.6
20″ 775 62.0 584.20 587 512.8 94 24 34.92 685.8
24″ 915 68.3 692.15 702 614.4 105 24 41.27 812.8
IMP. NOTES: 1,6mm raised face not included in the E & H dimensions
Threaded Flanges 600 Lbs Dimensions:

Drilling
Nominal Bore Dia.
(D)		 Thick.
(E)		 Dia.
(F)		 Dia.
(B)		 Dia.
(A)		 Height1
(H)		 Nbr Holes Dia.
(C)
1/2″ 95 14.3 35.05 38 23.6 22 4 15.87 66.7
3/4″ 115 15.9 42.92 48 29.0 25 4 19.05 82.6
1″ 125 17.5 50.80 54 35.8 27 4 19.05 88.9
1 1/4″ 135 20.7 63.50 64 44.4 29 4 19.05 98.4
1 1/2″ 155 22.3 73.15 70 50.6 32 4 22.22 114.3
2″ 165 25.4 91.94 84 63.5 37 8 19.05 127.0
2 1/2″ 190 28.6 104.65 100 76.2 41 8 22.22 149.2
3″ 210 31.8 127.00 117 92.2 46 8 22.22 168.3
3 1/2″ 230 35.0 139.70 133 104.9 49 8 25.40 184.2
4″ 275 38.1 157.22 152 117.6 54 8 25.40 215.9
5″ 330 44.5 185.67 189 144.4 60 8 28.57 266.7
6″ 355 47.7 215.90 222 171.4 67 12 31.75 292.1
8″ 420 55.6 269.75 273 222.2 76 12 31.75 349.2
10″ 510 63.5 323.85 343 276.2 86 16 34.92 431.8
12″ 560 66.7 381.00 400 328.6 92 20 34.92 489.0
14″ 605 69.9 412.75 432 360.4 94 20 38.10 527.0
16″ 685 76.2 469.90 495 411.2 106 20 41.27 603.2
18″ 745 82.6 533.40 546 462.0 117 20 44.45 654.0
20″ 815 88.9 584.20 610 512.8 127 24 44.45 723.9
24″ 940 101.6 692.15 718 614.4 140 24 47.62 838.2
IMP. NOTES: 6,4mm raised face not included in the E & H dimensions

ASME B16.5 Threaded Flanges Dimensional Tolerances

Outside Diameter
≤ 24 = 1.6 mm | > 24 = ± 3.2 mm		 Inside Diameter
Within Limits on Boring Gauge
Diameter of Contact Face
1.6 mm Raised Face = ± 0.8 mm
6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm		 Drilling
Bolt Circle = 1.6 mm | Bolt Hole Spacing = ± 0.8 mm
Eccentricity of Bolt Circle with Respect to Facing
≤ 2½ = 0.8 mm max. | ≥ 3 = 1.6 mm max.
Outside Diameter of Hub
≤ 12 = + 2.4 mm / – 1.6 mm | ≥ 14 = ± 3.2 mm		 Diameter of Counterbore
Same as forInside Diameter
Thickness
≤ 18 = + 3.2 mm / – 0 | ≥ 20 = + 4.8 mm / – 0		 Length thru Hub
≤ 18 = + 3.2 mm / – 0.8 mm | ≥ 20 = + 4.8 mm / – 1.6 mm

Manufacturing Process of Threaded Flanges
